Overview

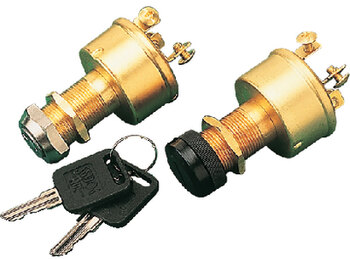

Three Position Magneto-Style Ignition Switch is constructed of stamped brass. For off, ignition, and start functions. Ignition (accessory) circuit is not activated in the solenoid (start) position. 13/16\" diameter long shaft for a maximum panel thickness: 1-1/8. Five screw terminal electrical connection. Ignition: 15A @ 12VDC. Solenoid: 30A @ 12VDC. Includes two keys.
Specifications
Category Name
Electrical-switches
Sale Type
New
Manufacturer
Sea-Dog Line
Manufacturer Qty
0
UPC
35514423618
Hazard
9
LNSuse1
91714
LNSuse3
21793
ModuleID
PF_381269
DMPPartNo
54-1836
KMSPartNo
SDG 4203511
AS400Description
SWITCH 3POS MAG-IGNITION BRASS
VendorItemNumber
420351-1
WebLongDescription

Three Position Magneto-Style Ignition Switch is constructed of stamped brass. For off, ignition, and start functions. Ignition (accessory) circuit is not activated in the solenoid (start) position. 13/16" diameter long shaft for a maximum panel thickness: 1-1/8. Five screw terminal electrical connection. Ignition: 15A @ 12VDC. Solenoid: 30A @ 12VDC. Includes two keys.

WebShortDescription

3 Position Magneto Style Ignition/Starter Switch
