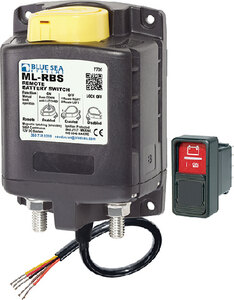

ML-SERIES HD REMOTE BATTERY SWITCH (BLUE SEA SYSTEMS) 12V DC

Specifications

Category Name	Electrical-switches	Stock Number	661-7700	Sale Type	New
Manufacturer	Blue Sea Systems	UPC	632085077006	Hazard	9
LNSuse1	78950	LNSuse3	4588910	ModuleID	PF_159735
DMPPartNo	00-3436	KMSPartNo	BLU 7700	AS400Description	SOLENOID ML 12V RBS W/MANCTRL
VendorItemNumber	7700	WebLongDescription	Allows high amp switching under load from remote locations or manually, eliminating long cable runs. Includes remote control switch # 2145 with lockout slide to prevent accidental switching. 12V DC coil controls circuits up to 32V DC and is rated for 500 amps continuous duty and 2500 cranking amps (10 sec.) to handle even large diesel engines. Magnetic latch only draws current when changing the state of switch: it draws no current in the "ON" or "OFF" states. 3/8" Tin plated copper studs.	WebShortDescription	Blue Sea Systems 7700 ML-RBS Remote Battery Switch with Manual Control - 12V DC 500A
Price

Description

Allows high amp switching under load from remote locations or manually, eliminating long cable runs. Includes remote control switch # 2145 with lockout slide to prevent accidental switching. 12V DC coil controls circuits up to 32V DC and is rated for 500 amps continuous duty and 2500 cranking amps (10 sec.) to handle even large diesel engines. Magnetic latch only draws current when changing the state of switch: it draws no current in the \"ON\" or \"OFF\" states. 3/8\" Tin plated copper studs.
